The 911 Head Stud

911 engine showing head studs

The cylinder head stud used in the 911 models is another one of those parts that has seen many different changes over the years. It was often the cause of failure for many combustion chamber leaks and oil leaks. Whether the stud itself failed or the threads in the case that failed, one thing that was for sure the repair is expense and time consuming.

The history of the Head Stud

Porsche had been using the same type and design of cylinder head stud for 20 years before the 911 motor came along in the 4 cylinder motors. In the 356 and 912 motors broken head studs or pulled threads are a rarity and failures are just not seen often. With the 6 cylinder design Porsche used the same type and design of cylinder head studs and nuts. At first the 6 cylinder engines were an aluminum case engine, just like the 356 models and had a similar bore size cylinder. The also used cast iron cylinders or Biral type cylinders, just like the 356 models.

In the early motors, (1965-67), head studs were not really such a problem. However, in 1968 with the introduction of the magnesium crankcases things were about to change. At first the main issues were just head stud loosening requiring that the head studs be re-torqued during regular service intervals. This was a change from the 4 cylinder motors were re-torqueing was not needed and somewhat impossible to do without some disassembly.

Mild Steel 911 Head Stud
Standard Mild Steel Head Stud

New designs

The real issues began to show when the engines reached the 2.7L displacement. With the introduction of the 2.7L engine came a new cylinder design. Instead of the cylinders being a cast iron or a biral design, (cast iron sleeve with aluminum fins), they were now all aluminum. The aluminum cylinders were coated with a Nikasil plating. The coating makes the aluminum extremely strong and resistant to wear. However, without the cast iron liner the expansion rate of the cylinder has greatly increased.

Because aluminum alloys expand at twice that of steel the amount of pressure placed on the head studs as the engine heats up is now greatly increased. The next issue we began to see was increased engine and exhaust temperatures due to emission controls and leaner fuel mixtures. This increased heat not only affected the thermal expansion but also heated the studs up, particularly on the exhaust side. This increased their chances of rust as the oils are cooked out of the metal and moisture from the road conditions could accelerate corrosion.

Biral Cylinder
Biral Cylinder,Cast Iron Liner with aluminum fins

The Head Stud solution

Porsche had encountered the problems of head stud failures in their racing program and had been experimenting with a new type of alloy head stud. The alloy had been developed by a French company and had been engineered so its thermal expansion rate closely matched that of the mostly aluminum motor. The new material was trademarked as Dilavar.

The head studs were first used in production engines in 1977 models. The TSB bulletin 7704 released in July 1977 stated that whenever the cylinder heads were removed the mild steel studs were to be replaced with Dilavar studs on the exhaust side. The 911 Turbo models were fitted with Dilavar studs on both the intake and exhaust sides of the engine.

Continuing development

This first version of the Dilavar head studs had a very shiny finish to them. Most likely due to the high nickel content of the stud. However, as time progressed and failures due to corrosion persisted the studs also changed. In the early 1980’s the studs took on a yellowish finish. This was the first attempt at controlling the corrosion of the stud. By the late 1980’s the studs were being delivered by Porsche with a black powder coat finish on the shaft of the stud.

Dilvar Head Stud
Latest Version of the Dilvar Head Stud

The last change to come in Dilavar stud was with the introduction of the 993 models in 1994. The studs changed dramatically in look. The outside of the stud is now almost all coated in threads. It still has a black powder coat finish applied to the outside of the stud. It now also comes with Blue or Red loctite applied the crankcase end of the stud. As far as the composition of the alloy we just don’t know if any changes were made to it over the years, as Porsche has not released that information.

Failures

There are 4 main types of head stud failures.

  1. Fatigue: this is where the head stud is stretched and released over and over resulting in its eventual failure by breakage.
  2. Corrosion: when the head stud has corrosion spots forming on the stud, these spots will weaken the case harden on the stud. Eventually as the stud is stretched and released this intrusion into the stud results in the stud cracking and eventually breaking.
  3. Thread failure: thread failure is when the stud itself does not break, instead the threads in the crankcase where the stud is installed will pull out. This releases the stud and it no longer applies any clamping force to the heads.
  4. Service failures: failure to maintain correct cylinder head torque at regular service intervals. Resulting in head nuts vibrating off and damage to cylinders, cylinder heads, and crankcase due to moving components.

Up until 1978 most of the head stud failures seen were at the crankcase level. The original mounting of the studs into the crankcase was by a thread cut directly into the magnesium crankcase. The threads were the weak point in the equation and the studs would pull out of the case.

In 1978 Porsche changed the design of the crankcase to a pressure cast aluminum case. With the change the threads cut into the aluminum case were now stronger than those in the magnesium crankcases. With this change we now started to see more actual stud breakages rather than the stud pulling out of the case.

Stud breakages can occur anywhere along the length of the stud. I have seen them break in the middle, right at the case, and up just below the head nut. In the late 1980’s when still working for Porsche it was not uncommon when servicing 911SC to pull the valve covers and find two or three broken studs just sitting in their respective holes.

Maintenance and repairs

One of the most overlooked items when servicing a 911 is maintaining the correct cylinder head torque. Every 15,000 miles when a valve adjustment is performed the technician is supposed to check all cylinder head torques. This services two purposes, firstly it maintains the correct torque on structurally sound engines and secondly it will show up a failed head stud before it can cause more damage.

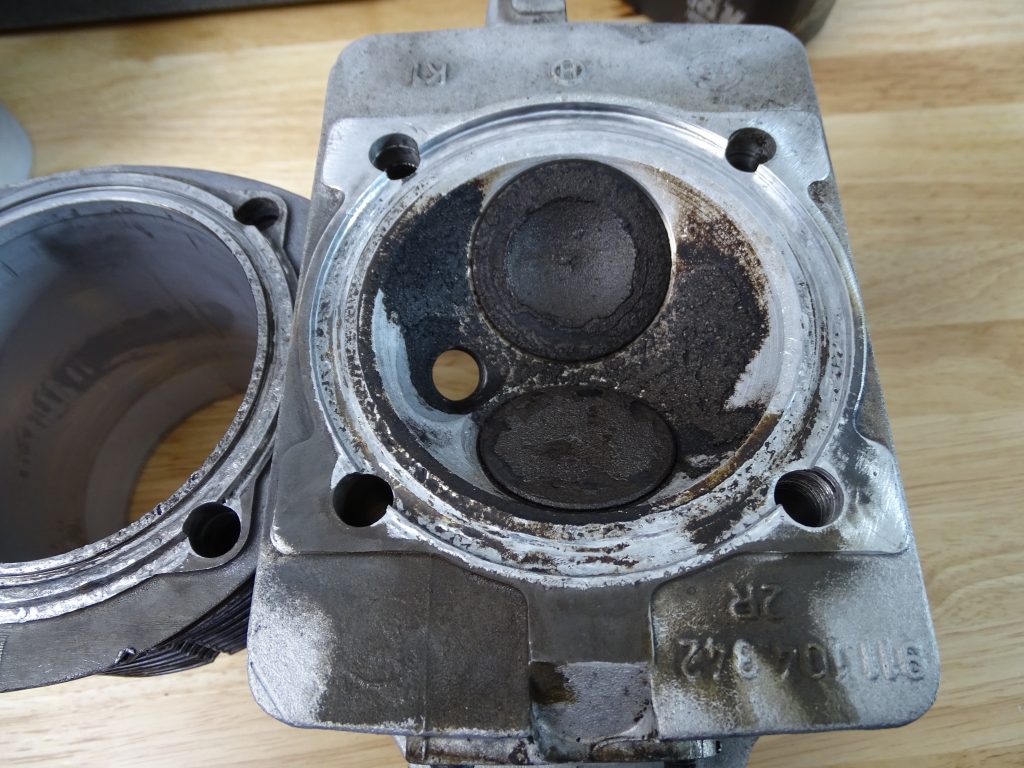

Damaged Cylinder head and Barrel due to loose head studs
Cylinder head and Barrel damaged due to loose head studs

When checking the head nut torque the torque wrench needs to be set to 35 NM. It does not matter what order the nuts are torqued in, just that all nuts are correctly tightened. If one or more head studs are found to be broken this may or may not be cause for alarm. If the studs are broken or pulled on different cylinders and three of the four studs on any given cylinder are intact, then the repair can be scheduled around the owners needs and or budget. The engine can still be operated without further damage being done.

If two or more studs are broken on one cylinder, then this will require attention much sooner. It is also not recommended to continue operating the engine. Replacing the cylinder head studs is not a simple job, taking around 30 to 40 hours for an experienced Porsche shop to perform. So, it is important to evaluate your options when looking at this type of repair.

What to use and when

When repairing damaged head studs or rebuilding a motor in general there are several things to keep in mind.

  1. Whenever re-building either the complete motor or just the top end on magnesium crankcases always install case savers or time serts into the case. Even if the threads look good and no studs have pulled.
  2. When working with 2.0, 2.2, or 2.4L motors that are using Biral or cast iron cylinders it is Ok to use mild steel studs top and bottom.
  3. When rebuilding the 2.7L magnesium case engines always install case savers/time-serts to the case as well as installing the latest Dilavar studs in the exhaust side of the motor.
  4. When working with the 3.0L 911SC models always replace the early “shiny “dilavar studs with the latest design of coated stud. This is because the shinny studs are more susceptible to corrosion and failure.
M10 Time-sert, 911 Cylinder head Stud
Cylinder Head Time-Sert used on the Magnesium Crankcases

A couple of things to keep in mind when working on the 911 and 930 models.

  1. Models 1965-83 911’s and 1975-90 3.0L/3.3L 930 models require cylinder head re-torqueing every 15,000 miles
  2. The 1984 and up 911 Carrera models do not require routine retorqueing. This is because the heads are assembled using a torque angle method at assembly.
  3. The 930 models from 1991 and on also use the torque angle method and do not require routine retorqueing.

Lastly the new replacement cylinders that are being supplied by Mahle for the early 2.0L, 2.2L, and 2.4L engines are now the Nikasil type. This means that the expansion rate of the cylinder has now changed to that of the 2.7L engine. In my opinion if you are using any of these new cylinder designs on these early motors it is a good idea to apply the same standards of head studs to those motors. This can also be extended to the 912 engines as those cylinders are also now Nikasil.

Aftermarket Studs

There are several head studs on the market at the moment. For mild steel I like the Canyon brand of head stud. It comes with a powder coated finish on the stud to help protect from corrosion and I have no issues with them. For the dilavar stud the only ones that I use are the factory stud. I stick with the factory product because of all the development that this been put into this part. Once again using the factory part I have never had a problem.

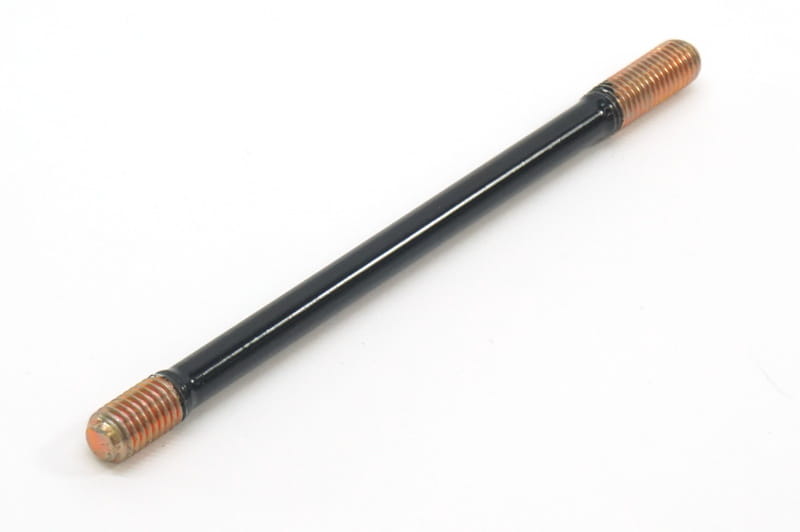

Mild Steel Head Stud
Powder Coated Mild steel Head Stud

 ARP also makes a head stud kit for the 911/930 models. Usually the ARP product is generally good. However, they do not release the actual specification of the alloy that they use. Also, the stud is not coated to protect it from corrosion. My last thing that I don’t like is the type of nut supplied with the stud. It makes it a little harder when servicing the engine to get a 12 point socket into the cavity to re-torque at the service interval.

I always tend to lean towards factory parts when repairing. In all the engines I have done when setting up correctly and following the repair procedures I rarely have any issues.

Share on facebook
Facebook
Share on twitter
Twitter
Share on linkedin
LinkedIn
Share on pinterest
Pinterest
Share on email
Email

10 thoughts on “The 911 Head Stud”

  1. Why would you only use the dilavar stud on the exhaust side? Is the cost that much more to make it worth it to only use them on the exhaust side or is there another reason? T..

    1. Terry, yes the cost of the Dilavar stud is 3 times that of the mild steel stud. On the conventional engines, (non- Turbos), the exhaust side of the engine is exposed to considerably more heat. This is why Porsche says to use them only on the exhaust side of the motor.

  2. I go to see everyday some sites and blogs to read articles or
    reviews, however this web site gives quality based articles.

  3. You really make it seem so easy with your presentation but I find this matter to be actually something that I think I would never understand.
    I’m looking forward for your next post!

  4. If the head studs have been replaced on a 1977 911 years ago and theres been no issues with the engine thats now at 115km should I assume that its only time before the magnesium gives? or did some of these engines stand the test of time okay?

    1. Harv,
      It is going to depend on how the job was done and what studs were used. If the case had timeserts installed and the exhaust studs were dilivar then I would expect them to last a very long time. Head studs should be checked at every valve adjustment. This is because it is normal for studs to loosen up. It is also a way to check the studs for any problems like threads pulling or studs breaking. If everything is fine and the head studs tighten to 35 Nm then you are good to go…
      Kurt

  5. Hi Kurt,
    My name is Wayne Wallace. I have a 964 turbo that I want to rebuild myself, I do realize that these motors are different. I am looking for someone like yourself who has products that will help me in the learning process. I really enjoyed your article on the head studs, In fact I have been trying to decide on which studs to use on this build as I am going to increase the horsepower and compression. I was told the ARP don’t expand enough and can pull from the case or actually warp the heads a little. I hove a set of new 993 all threads and this seems to be what you prefer. Is that what you would use in a turbo build? Please give me an email on anything I might purchase from you to help me with learning these engines. I do all my other repairs myself.

    Thanks,
    Wayne

    1. Wayne,
      We do not sell parts anymore as that side of our business was sold about two years ago. Yes, I would use the factory Dilavar head studs. They have been developed to match the expansion rate of the barrels and heads, whereas the ARP studs have not. Feel free to reach out to us if we can help answer your questions though.
      Kurt
